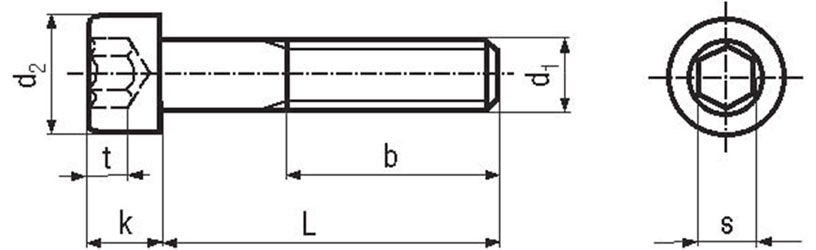

Dimensions of DIN 912 Socket Head Cap Screw
|
Size (d1) |
Thread Pitch |
Head Diameter (d2) |
Head Height (k) |
Key Size (s) |
Key Engagement (t) |
|||
|
Min |
Max |
Min |
Max |
Min |
Max |
Nominal |
||
|
M1.4 |
0.30 |
2.46 |
2.74 |
1.26 |
1.40 |
1.320 |
1.360 |
0.6 |
|
M1.6 |
0.35 |
2.86 |
3.14 |
1.46 |
1.60 |
1.520 |
1.560 |
0.7 |
|
M2 |
0.40 |
3.62 |
3.98 |
1.86 |
2.00 |
1.520 |
1.560 |
1 |
|
M2.5 |
0.45 |
4.32 |
4.68 |
2.36 |
2.50 |
2.020 |
2.060 |
1.1 |
|
M3 |
0.50 |
5.32 |
5.68 |
2.86 |
3.00 |
2.520 |
2.580 |
1.3 |
|
M4 |
0.70 |
6.78 |
7.22 |
3.82 |
4.00 |
3.020 |
3.080 |
2 |
|
M5 |
0.80 |
8.28 |
8.72 |
4.82 |
5.00 |
4.020 |
4.095 |
2.5 |
|
M6 |
1.00 |
9.78 |
10.22 |
5.70 |
6.00 |
5.020 |
5.140 |
3 |
|
M8 |
1.25 |
12.73 |
13.27 |
7.64 |
8.00 |
6.020 |
6.140 |
4 |
|
M10 |
1.50 |
15.73 |
16.27 |
9.64 |
10.00 |
8.025 |
8.175 |
5 |
|
M12 |
1.75 |
17.73 |
18.27 |
11.57 |
12.00 |
10.025 |
10.175 |
6 |
|
M14 |
2.00 |
20.67 |
21.33 |
13.57 |
14.00 |
12.032 |
12.212 |
7 |
|
M16 |
2.00 |
23.67 |
24.33 |
15.57 |
16.00 |
14.032 |
14.212 |
8 |
|
M18 |
2.50 |
26.67 |
27.33 |
17.57 |
18.00 |
14.032 |
14.212 |
9 |
|
M20 |
2.50 |
29.67 |
30.33 |
19.48 |
20.00 |
17.050 |
17.230 |
10 |
|
M22 |
2.50 |
32.61 |
33.39 |
21.48 |
22.00 |
17.050 |
17.230 |
11 |
|
M24 |
3.00 |
35.61 |
36.39 |
23.48 |
24.00 |
19.050 |
19.275 |
12 |
|
M27 |
3.00 |
39.61 |
40.39 |
26.48 |
27.00 |
19.065 |
19.275 |
13.5 |
|
M30 |
3.50 |
44.61 |
45.39 |
29.48 |
30.00 |
22.065 |
22.275 |
15.5 |
|
M33 |
3.50 |
49.61 |
50.39 |
32.38 |
33.00 |
24.065 |
24.275 |
18 |
|
M36 |
4.00 |
53.54 |
54.56 |
35.38 |
36.00 |
27.065 |
27.275 |
19 |
|
M39 |
4.00 |
57.54 |
58.46 |
38.38 |
39.00 |
27.065 |
27.275 |
22 |
|
M42 |
4.50 |
62.54 |
63.46 |
41.38 |
42.00 |
32.080 |
32.330 |
24 |
|
M45 |
4.50 |
66.54 |
67.46 |
44.38 |
45.00 |
32.080 |
32.330 |
24 |
|
M48 |
5.00 |
71.54 |
72.46 |
47.38 |
48.00 |
36.080 |
36.330 |
28 |
|
M56 |
5.50 |
93.46 |
84.54 |
55.26 |
56.00 |
41.080 |
41.330 |
34 |
|
M64 |
6.00 |
95.46 |
96.54 |
63.26 |
64.00 |
46.080 |
46.330 |
38 |
|
M72 |
6.00 |
107.46 |
108.54 |
71.26 |
72.00 |
55.100 |
55.400 |
43 |
|
M80 |
6.00 |
119.46 |
120.54 |
79.26 |
80.00 |
65.100 |
65.400 |
48 |
|
M90 |
6.00 |
134.37 |
135.63 |
89.13 |
90.00 |
75.100 |
75.400 |
54 |
|
M100 |
6.00 |
149.37 |
150.63 |
99.13 |
100 |
85.120 |
85.470 |
60 |
|
||||||||||
|
